E-MAX Derailleur
Available Colors
Bumblebee
Cosmic black
Specifications
Weight: 17kg
Power: Electric
Frame: Alu 6061 Patented double triangle frame
Transmission: Microshift Acolyte 8 Speed Derailleur
Wheel size: 20"
Brakes: Shimano Hydraulic MT200, 160mm rotors
Light type: Integrated
Gearing: Microshift Acolyte 8 Speed Derailleur
Folding dimensions: 72x69x37cm
Dimensions
Seat height: A570-750mm
Reach: B420-440mm
Stack: C700-820mm
Bottom bracket height: D270mm
Wheelbase: E1088mm
Trail: G54mm
Available Accessories
Max Rear Rack

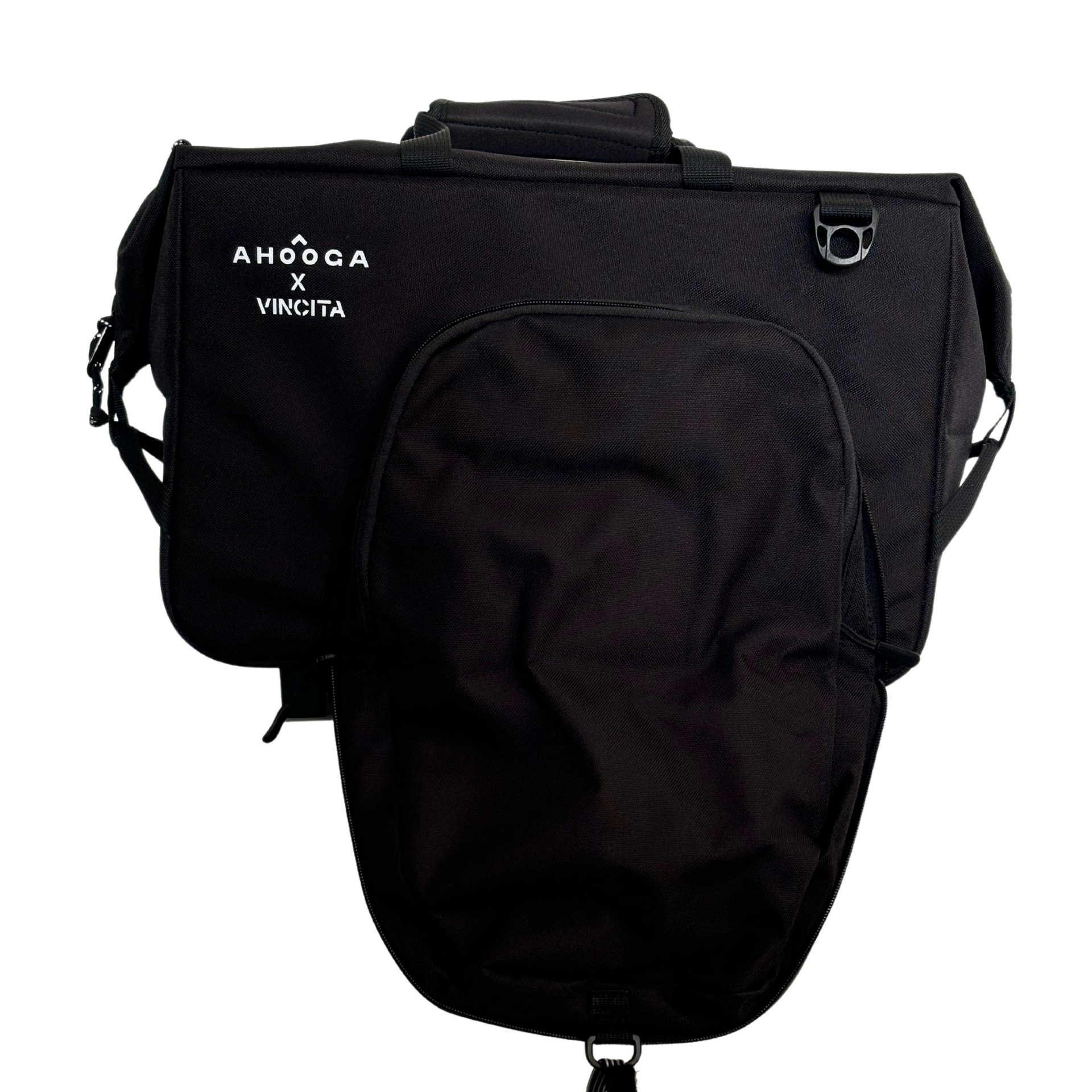

AHOOGAxVINCITA Nash Rack Bag with Klickfix Uniklip

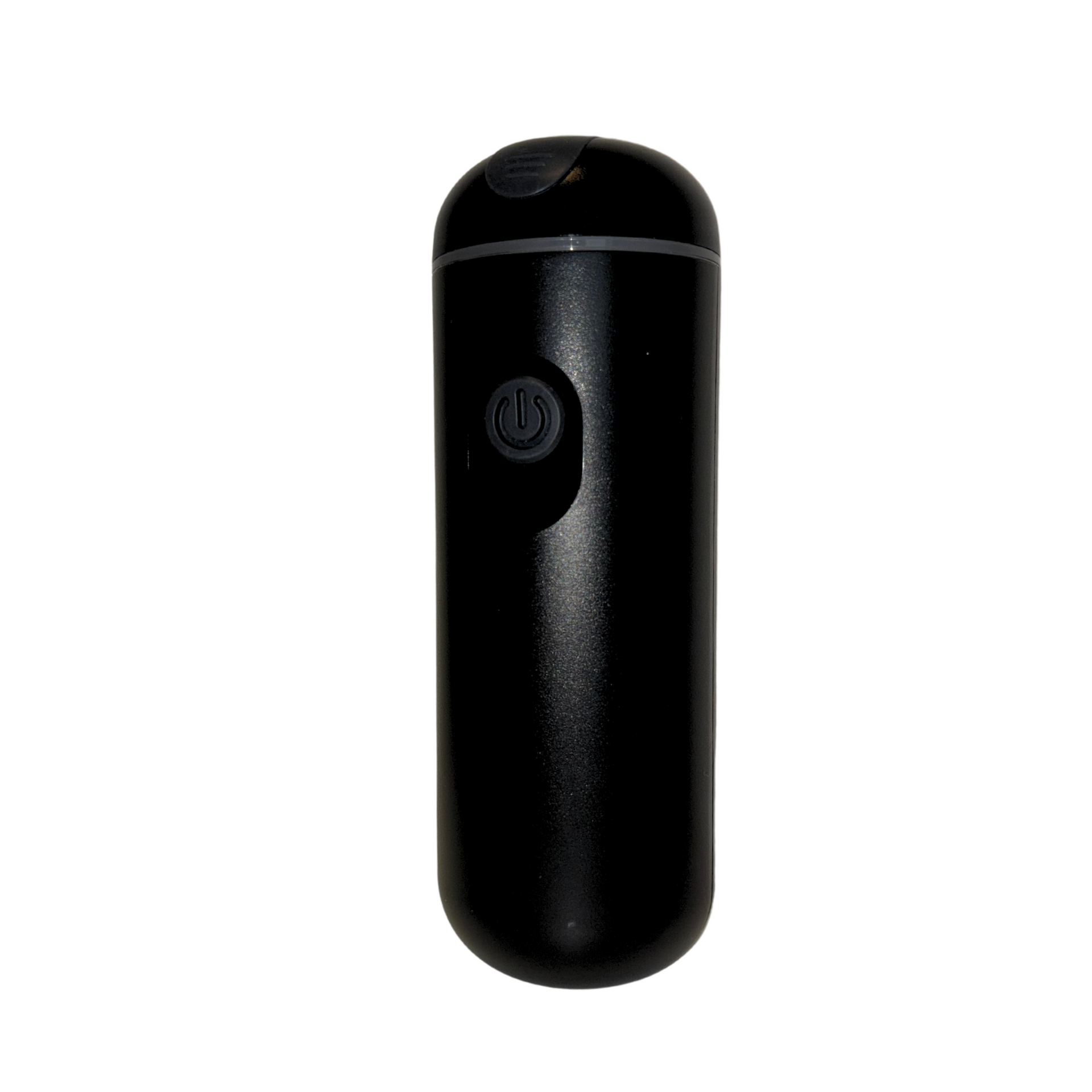

Max Battery Extender
MAX Carrying Handle
MAX Kickstand
Ahooga x Vincita Denim Backpack
Klickfix Extender for Seatpost
Klickfix Caddy for Stem
Tex-Lock eyelet M black + U-lock + X-lock
The best ride in the city.
Most folding bikes have a single tube cut through the middle, which makes for a wobbly ride.
Max breaks free from the norm with its patented design: the double triangle offers superior agility and rivals any full-size bike.
Invisible, fully integrated e-support
Enjoy a frictionless motor ad 5 assistance levels to zoom through the city. We designed our battery to be housed in the top tube, where it is safely locked. This allows a sleek look, hands-free travel and protection against theft.
Charge it on or off the bike as you wish.
Charge it on or off the bike as you wish.
The smallest fold on the market.
Big ride, small fold, at only 17kg.
In all its variations, Max is a curation of premium specs that stay conveniently light. That means easy transport, speed, and agility - at all times.
In all its variations, Max is a curation of premium specs that stay conveniently light. That means easy transport, speed, and agility - at all times.
Features to love
Fits all lifestyles
Accesorize for daily use or weekend adventures. Max fits travel and convenience accessories easily.
Accessories
FAQ
Compare all Max models
Weight
17kg
13kg
14kg
18kg
Power
Electric
Analog
Analog
Electric
Wheel size
20"
20"
20"
20"
Light type
Integrated
Battery lights
Battery lights
Integrated
Lights
Spanninga integrated front & rear + Busch & Müller Myc E 50 lux projector
Spanninga Arco - front and rear, For DE only: Contec StVZO light
Spanninga Arco - front and rear, For DE only: Contec StVZO light
Spanninga integrated front & rear + Busch & Müller Myc E 50 lux projector
Gearing
Microshift Acolyte 8 Speed Derailleur
Microshift Acolyte 8 Speed Derailleur
Shimano Alfine 8 gear hub
Shimano Alfine 8 gear hub
Brakes
Shimano Hydraulic MT200, 160mm rotors
Shimano Hydraulic MT200, 160mm rotors
Shimano Hydraulic MT200, 160mm rotors
Shimano Hydraulic MT200, 160mm rotors
Folding dimensions
72x69x37cm
72x69x37cm
72x69x37cm
72x69x37cm
Maximum Payload
120kg (rider + bike)
120kg (rider + bike)
120kg (rider + bike)
120kg (rider + bike)
Frame
Alu 6061 Patented double triangle frame
Alu 6061 Patented double triangle frame
Alu 6061 Patented double triangle frame
Alu 6061 Patented double triangle frame
Fork
Alu 6061 Fork
Alu 6061 Fork
Alu 6061 Fork
Alu 6061 Fork
Chainring
52 teeth – 170mm cranks
50 teeth – 170mm cranks
50 teeth – 170mm cranks
52 teeth – 170mm cranks
Chain
Shimano 107 links + QL
Shimano 107 links + QL
Shimano 109 links + QL
Shimano 109 links + QL
Pedals
MKS – UXD Ezy removable pedals
MKS – UXD Ezy removable pedals
MKS – UXD Ezy removable pedals
MKS – UXD Ezy removable pedals
Handlebars
600mm wide
600mm wide
600mm wide
600mm wide
Grips
Lockable Grip Nucore Town wave – Ø22mm
Lockable Grip Nucore Town wave – Ø22mm
Lockable Grip Nucore Town wave – Ø22mm
Lockable Grip Nucore Town wave – Ø22mm
Stem
Foldable stem, height adjustable
Foldable stem, height adjustable
Foldable stem, height adjustable
Foldable stem, height adjustable
Seatpost
Alu seatpost, height adjustable
Alu seatpost, height adjustable
Alu seatpost, height adjustable
Alu seatpost, height adjustable
Saddle
Selle royal Ariel
Selle royal Ariel
Selle royal Ariel
Selle royal Ariel
Fenders
Hard mudguards – Polycarbonate with mudflaps (front and rear)
Hard mudguards – Polycarbonate with mudflaps (front and rear)
Hard mudguards – Polycarbonate with mudflaps (front and rear)
Hard mudguards – Polycarbonate with mudflaps (front and rear)
Engine
250W / 36V – max torque 35 Nm, 5 assist levels
-
-
250W / 36V – max torque 35 Nm, 5 assist levels
Display
High-resolution color display
-
-
High-resolution color display
Sensor
Torque sensor
-
-
Torque sensor
Max speed
E-support up to 25km/h
-
-
E-support up to 25km/h
Battery
248Wh - Samsung cells, extendable to 428Wh
-
-
248Wh - Samsung cells, extendable to 428Wh
Price
€2.999,00
€1.799,00
€1.999,00
€3.499,00
